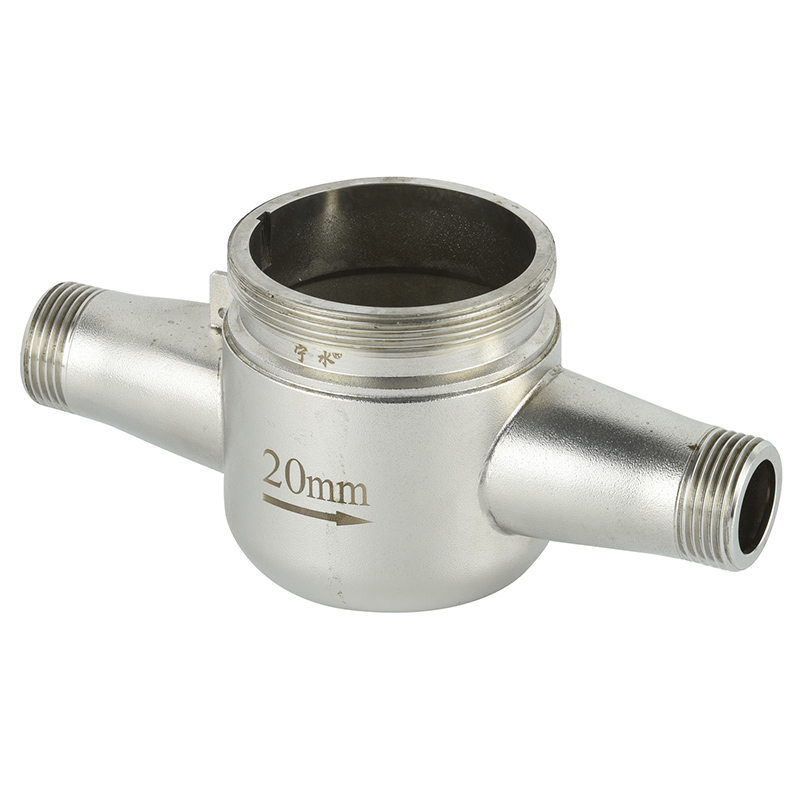

Stainless Steel water meter body
This Stainless Steel Water Meter body is offered by China manufacturer Ningbo Ningshui instruments co.,ltd. The company is a professional manufacturer of water meters and accessories, as well as various full series of cold/hot water accessories and inner works. The sizes range from 15mm to 500mm for various water meters, including residential and industrial applications, automatic reading systems, and intelligent water meters. The company is especially experienced in providing OEM services for water meter parts.
Send Inquiry
Product Description
Ningshui Stainless Steel Water Meter body Introduction
This is Ningshui Stainless Steel Water Meter body .
The Water meter body is an important part of the water meter assembly. A stainless steel water case provides corrosion resistance, a longer service life, and has a low price, making it a popular choice in the market. The water meter is assembled by combining the water meter body, mechanical mechanism, and water meter cover. Once assembled, the complete water meter undergoes testing to ensure its accuracy in measuring water usage.
→ According to customer's drawings (OEM and design)
→ ·For horizontal use
→ ·Material: SS201/SS304/SS316
→ .Measuring accuracy conform to ISO 4064 class B Standard
→ ·Selected high quality materials for steady & reliable characteristic
→ ·Universal use.Easy for interchange & maintenance
→ The structure is simple.
→ Easy to manufacture and maintain, low cost.
→ Durable, low water quality requirements.
→ The error is easy to adjust.
→ The requirements for straight pipe section are low.
The Water meter body is an important part of the water meter assembly. A stainless steel water case provides corrosion resistance, a longer service life, and has a low price, making it a popular choice in the market. The water meter is assembled by combining the water meter body, mechanical mechanism, and water meter cover. Once assembled, the complete water meter undergoes testing to ensure its accuracy in measuring water usage.
→ According to customer's drawings (OEM and design)
→ ·For horizontal use
→ ·Material: SS201/SS304/SS316
→ .Measuring accuracy conform to ISO 4064 class B Standard
→ ·Selected high quality materials for steady & reliable characteristic
→ ·Universal use.Easy for interchange & maintenance
→ The structure is simple.
→ Easy to manufacture and maintain, low cost.
→ Durable, low water quality requirements.
→ The error is easy to adjust.
→ The requirements for straight pipe section are low.
Ningshui Stainless Steel Water Meter body
Parameter (Specification)
| Size | Length(L) | Connection Thread |
| DN15 | 165mm | G3/4” B |
| DN20 | 195mm | G1” B |
| DN25 | 225mm | G1 1/4” B |
Features
·Register sealed type: Dry type; Wet type.
·Size: 15mm 20mm and 25mm
·Cold water / Hot water
·Custom lengths and threads are available
·Thread end type: BSP / NPT.
·Materials: Stainless Steel 304,201,316 (customization)
·Plastic Working pressure: PN10(10bar)
·Temperature rating: -20 ~110
·Pressure rating:MAP 10
·Pressure loss rating:P63
·Working pressure :1.6MPa
The maximum permissible error
In the lower zone from qmin inclusive up to but excluding qt is ±5%.
In the upper zone from qt inclusive up to and including qs is±2%;±3% for hot water meter.
In the upper zone from qt inclusive up to and including qs is±2%;±3% for hot water meter.
